The main export products are deep groove ball, centering ball, cylindrical roller, spherical roller, needle, angular contact, tapered roller, thrust cylindrical roller, linear bearing, etc.

You are here: Home / Products / Plastic cage / Thrust Needle Roller Bearing cage / Electric tool accessories Thrust Needle Roller Bearing Cage

Related Products

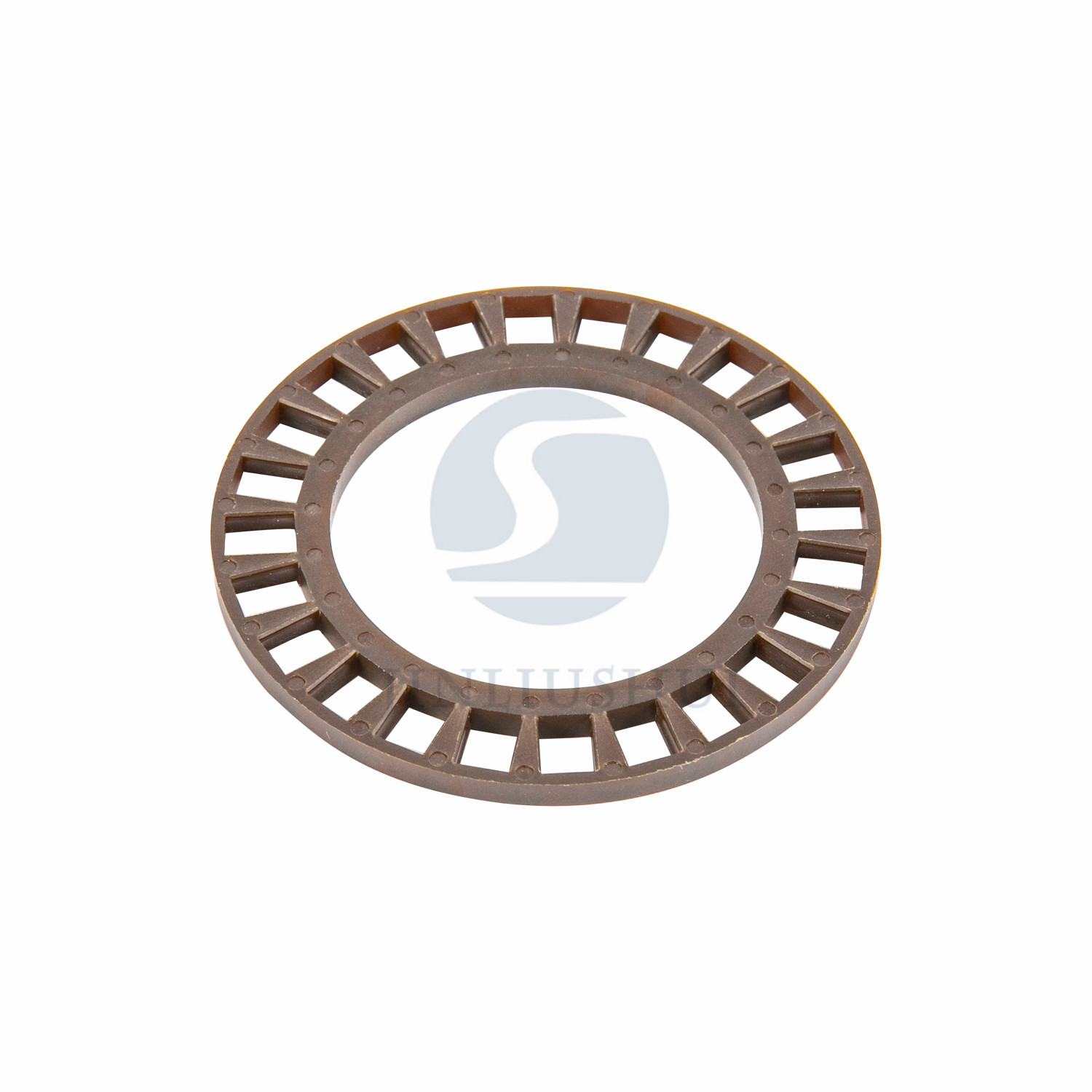

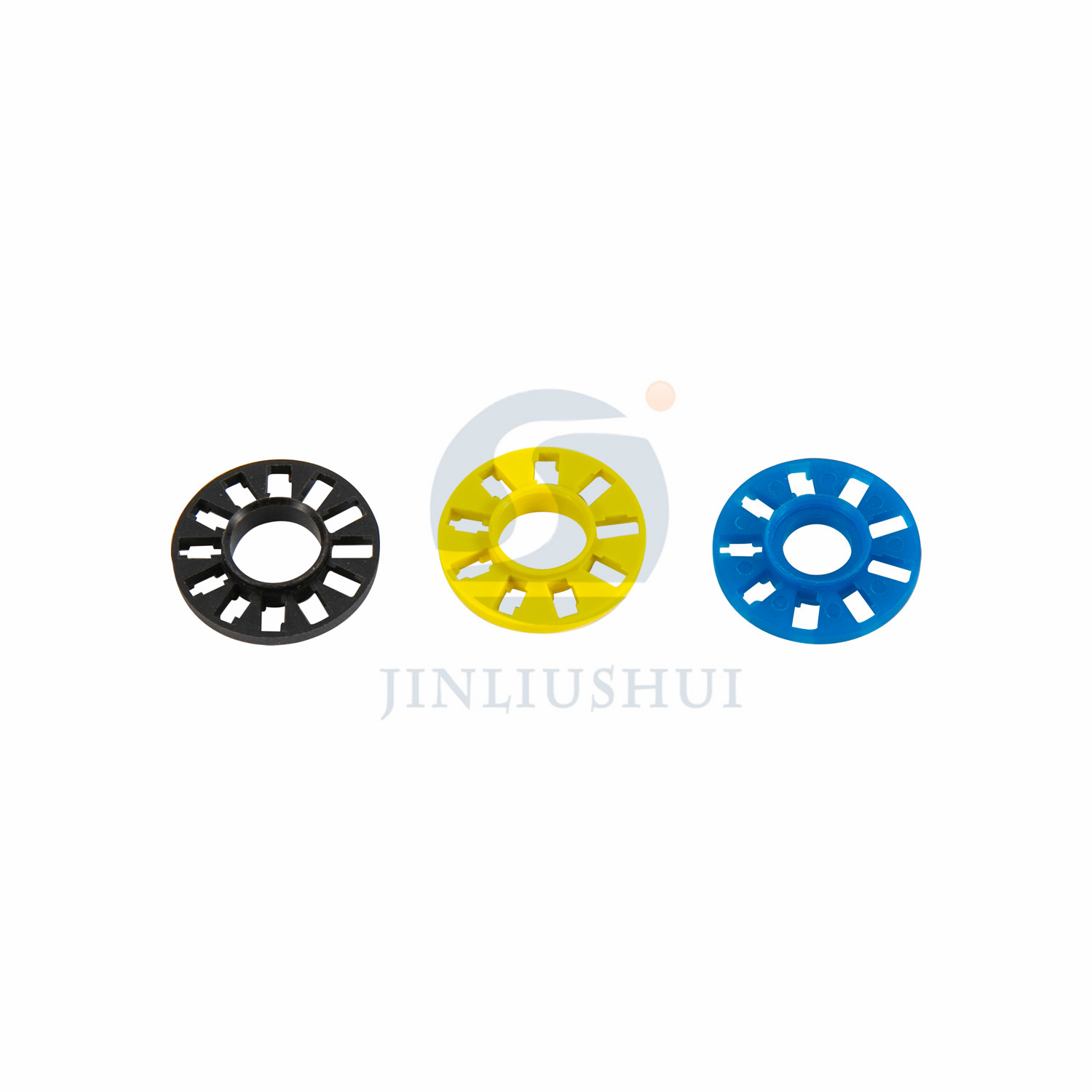

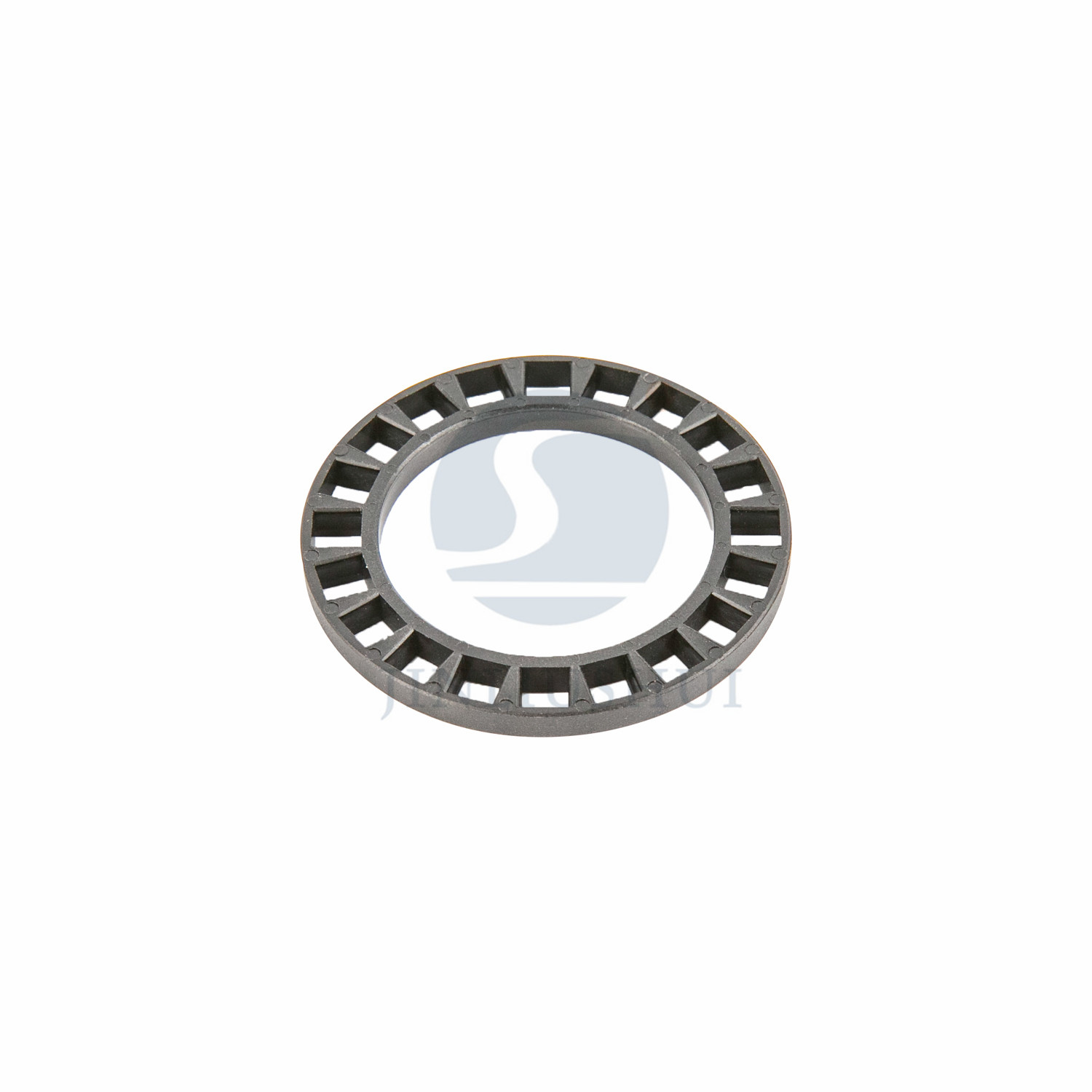

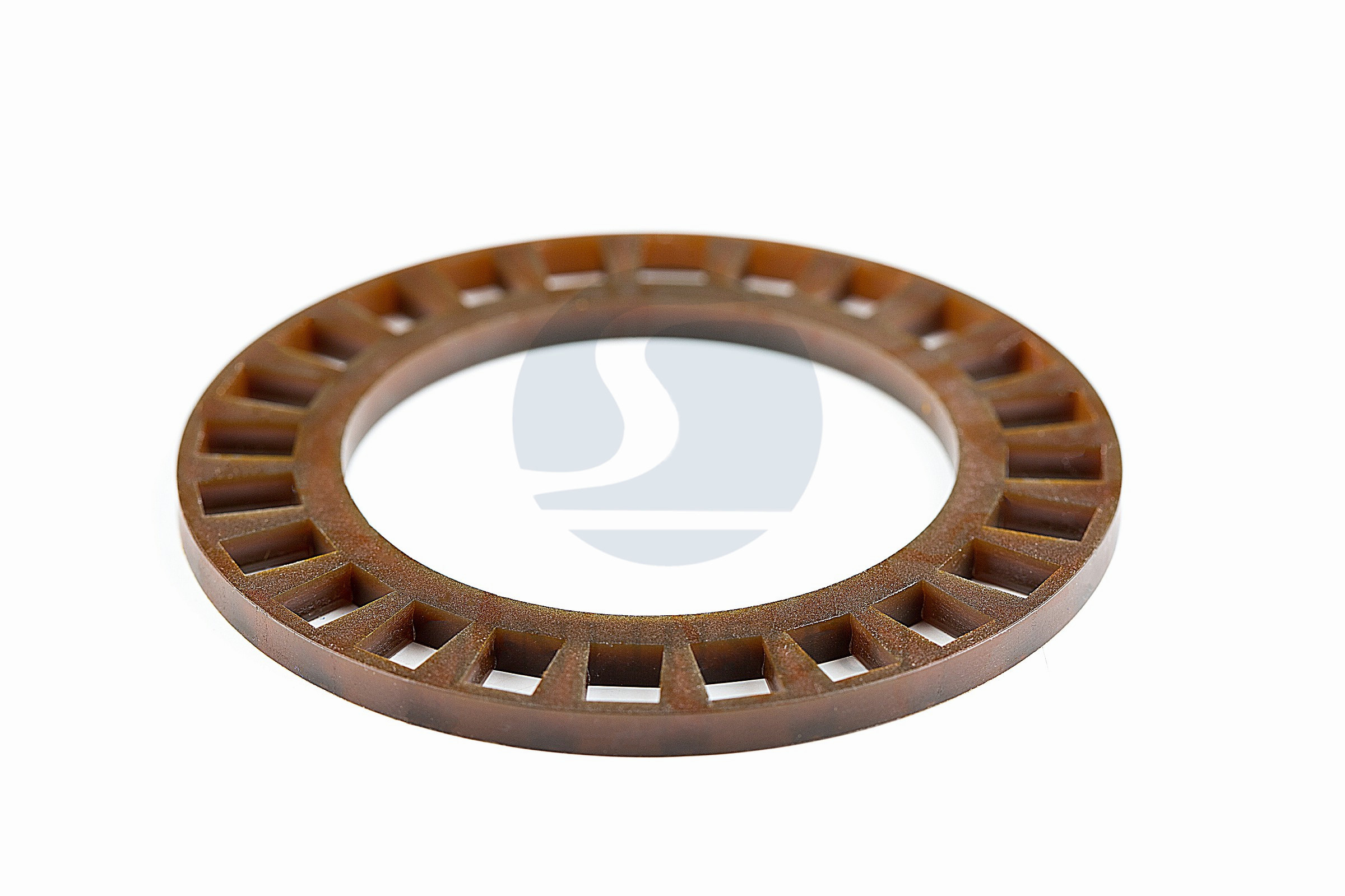

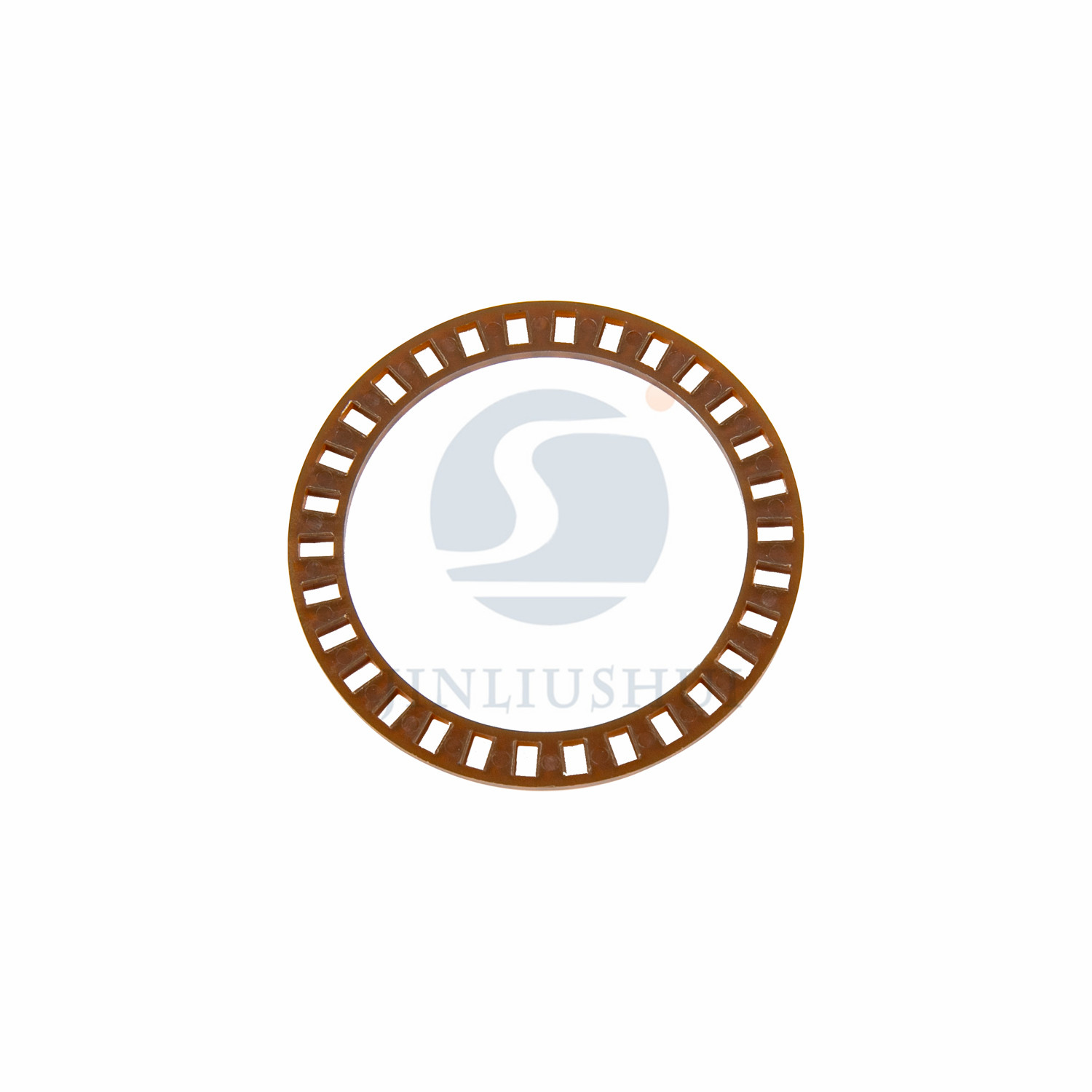

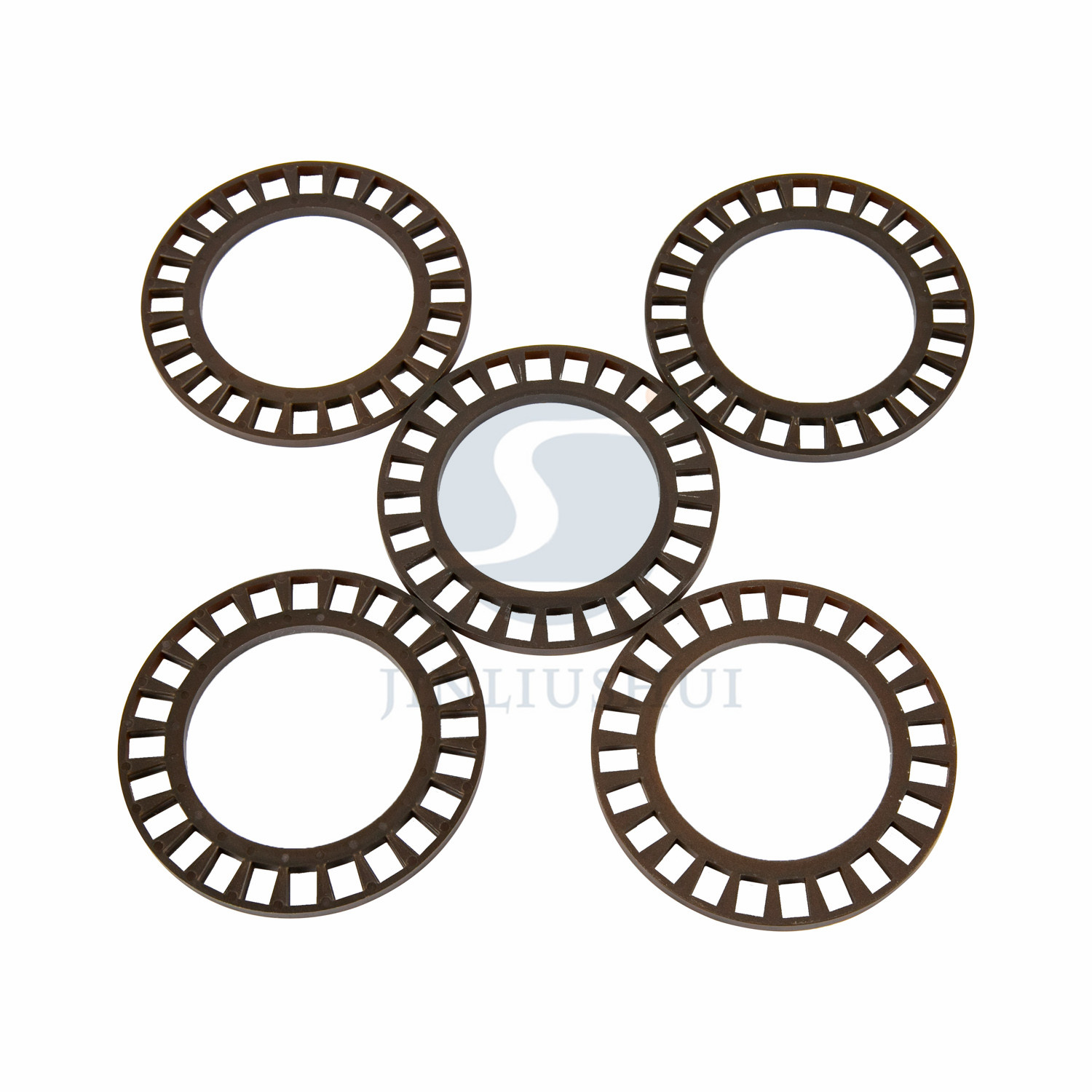

Thrust Needle Bearing Cage

Number	Dc	Dw	Z
KH1228	17	2.5	5
KH1026	15	2.5	4
KH0824	13	2.5	4
KH4060	50	5	8
KH5070	59.5	4.763	9

Main material
Name of engineering plastics	Abbreviation code	Temperature range(ºC)
Glass fiber reinforced polyamide 66	PA66-GF30	-40-120
	PA66-GF25	-40-120
	PA66-GF15	-40-110
	PA66-GF10	-40-110
Polyamide 66	PA66	-40-90
Glass fiber reinforced polyamide 46	PA46-GF30	-40-160
	PA46-GF25	-40-150
	PA46-GF15	-40-130
Polyamide 46	PA46	-40-110
Others	PI	>200
	PEEK
	PAEK
	PC	<100
	PP
	PE

Main material property
Serial	Varieties	PA66-GF25	PA66-GF30	PA66-GF15	PA66-GF10	PA66	PA46-GF30	PA46-GF25	PA46-GF15	PA46
1	Appearance	Fine grain, no obvious color difference, no coke particles.
2	melting point(ºC)	>255					>295
3	density(g/cm3)	1.29~1.35	1.33~1.39	1.20~1.26	1.17~1.23	1.11~1.17	1.39~1.43	1.33~1.37	1.27~1.31	1.16~1.2
4	Water absorbability(%)	<=1	<=1	<=1	<=1.2	<=1.5	<=2.6	<=2.8	<=3.1	<=3.7
5	Glass fiber content(%)	23~27	28~32	13~17	8~12	-	28~32	23~27	13~17	-
6	tensile strength Mpa	>150	>160	>110	>80	>70	>180	>170	>117	>87
7	impact strength (KJ/m2)	>42	>50	>35	>28	>60	>80	>70	>50	-
8	ball indentation hardness(MPa)	>200	>210	>170	>160	>130	>220	>205	>190	>170
9	Bending spring modulus (Gpa)	>6	>7	>5	>4	>2.5	>9	>7.5	>6	>3
10	Hot deformation temperature(1.8MPa)ºC	>240	>240	>240	>220	>70	>290	>280	>275	>190
	ps:Glass fiber is surface treated alkali free short glass fiber.

Number	Dc	Dw	Z
KH1228	17	2.5	5
KH1026	15	2.5	4
KH0824	13	2.5	4
KH4060	50	5	8
KH5070	59.5	4.763	9

Main material
Name of engineering plastics	Abbreviation code	Temperature range(ºC)
Glass fiber reinforced polyamide 66	PA66-GF30	-40-120
	PA66-GF25	-40-120
	PA66-GF15	-40-110
	PA66-GF10	-40-110
Polyamide 66	PA66	-40-90
Glass fiber reinforced polyamide 46	PA46-GF30	-40-160
	PA46-GF25	-40-150
	PA46-GF15	-40-130
Polyamide 46	PA46	-40-110
Others	PI	>200
	PEEK
	PAEK
	PC	<100
	PP
	PE
